ShowSignIns: Open the Sign-ins Module.

Tag: ShowSignIns

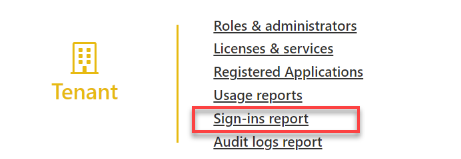

ShowSignIns launches the Sign-ins module.




XML
<ShowSignIns/>

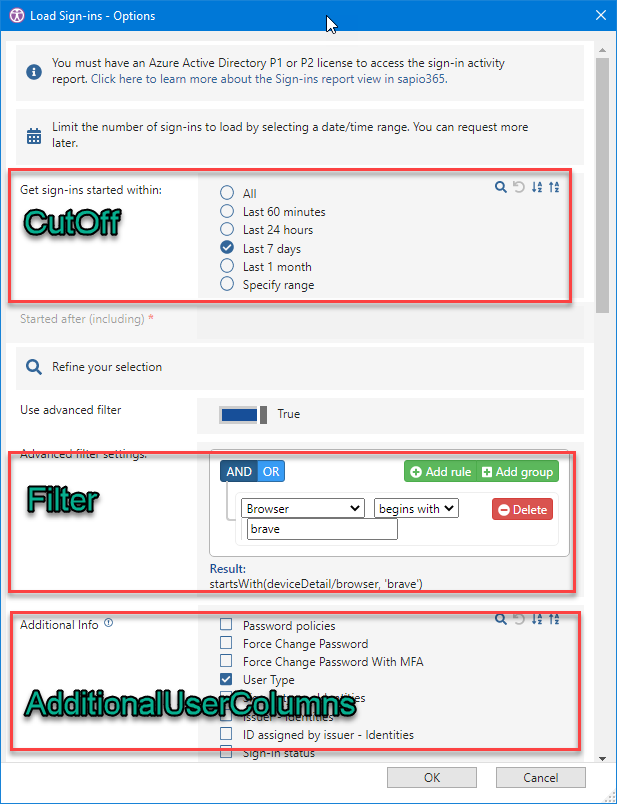

Tag Attributes

Attributes

Attribute Value

Comment

KeepAlive

True / False

Defaults to True

CutOff

all

lastHour

lastDay

lastWeek

lastMonth

other (a date in iso8601 format)

Defaults to all

Filter

Pre-filter string

As displayed in Filter editor Result -- see below

AdditionalUserColumns

Semicolon-separated User property names (or property ID)


MaxItems

Number greater than 0

Maximum number of sign-ins to load. Needs CutOff.

LimitPageSize

TRUE / FALSE

Limits each request to 100 sign-ins to reduce the risk of timeouts. Slower: use it only if you get timeouts. Needs CutOff.

UseBetaAPI

TRUE / FALSE

Uses the Microsoft Graph beta API, which returns more authentication, Conditional Access and policy-evaluation data. Beta properties can change. Outside the global cloud, the beta API is always used. Needs CutOff.


Possible User Properties

Password policies (passwordPolicies)
Force Change Password (forceChangePasswordNextSignIn)
Force Change Password With MFA (forceChangePasswordNextSignInWithMfa)
User Type (userType)
Sign in type - Identities (identities.signInType)
Issuer - Identities (identities.issuer)
ID assigned by issuer - Identities (identities.issuerAssignedId)
Sign-in status (accountEnabled)
Sku Part Number - Effective Assigned Licenses (assignedLicenses)
Unit Cost - Effective Assigned Licenses (ASSIGNEDLICENSESUNITCOST)
Source - Assigned Licenses (ALLASSIGNEDLICENSESBYSOURCE)
Group Email - Assigned Licenses (ALLASSIGNEDLICENSESGROUPEMAIL)
Sku Part Number - Assigned Licenses (ALLASSIGNEDLICENSESPARTNUMBER)
Sku ID - Effective Assigned Licenses (assignedLicenses.skuId)
Sku ID - Assigned Licenses (licenseAssignmentStates.skuId)
Group ID - Assigned Licenses (licenseAssignmentStates.assignedByGroup)
State - Assigned Licenses (licenseAssignmentStates.state)
License assignment error - Group licensing (licenseAssignmentStates.error)
Email (mail)
Email nickname (mailNickname)
Aliases (proxyAddresses)
IM Addresses (imAddresses)
Other Mails (otherMails)
First name (givenName)
Last name (surname)
Employee ID (employeeId)
Job title (jobTitle)
Company Name (companyName)
Department (department)
Office Phone (businessPhones)
Mobile phone (mobilePhone)
Fax Number (faxNumber)
Office location (officeLocation)
Street Address (streetAddress)
City (city)
State (state)
Postal Code (postalCode)
Country (country)
Preferred language (preferredLanguage)
Location for License Usage (usageLocation)
Created On (createdDateTime)
Account type on creation (creationType)
Sign-in Sessions valid from (signInSessionsValidFromDateTime)
Refresh tokens, session cookies valid from (refresTokenValidFromDateTime)
Age Group (ageGroup)
Consent Provided for Minor (consentProvidedForMinor)
Age group Classification (legalAgeGroupClassification)
Sync Enabled - On-Premises (onPremisesSyncEnabled)
Distinguished Name on premises (onPremisesDistinguishedName)
Immutable ID - On-Premises (onPremisesImmutableId)
Last Sync - On-Premises (onPremisesLastSyncDateTime)
Security ID - On-Premises (onPremisesSecurityIdentifier)
Domain Name on premises (onPremisesDomainName)
Sam Account Name on premises (onPremisesSamAccountName)
User Principal Name on premises (onPremisesUserPrincipalName)
Category of Prov. Error (onPremisesProvisioningErrors.category)
Date of Prov. Error (onPremisesProvisioningErrors.occuredDateTime)
Property Causing Prov. Error (onPremisesProvisioningErrors.propertyCausingError)
Value of property causing Prov. Error (onPremisesProvisioningErrors.value)
Custom Attribute 1 (onPremisesExtensionAttributes.extensionAttribute1)
Custom Attribute 2 (onPremisesExtensionAttributes.extensionAttribute2)
Custom Attribute 3 (onPremisesExtensionAttributes.extensionAttribute3)
Custom Attribute 4 (onPremisesExtensionAttributes.extensionAttribute4)
Custom Attribute 5 (onPremisesExtensionAttributes.extensionAttribute5)
Custom Attribute 6 (onPremisesExtensionAttributes.extensionAttribute6)
Custom Attribute 7 (onPremisesExtensionAttributes.extensionAttribute7)
Custom Attribute 8 (onPremisesExtensionAttributes.extensionAttribute8)
Custom Attribute 9 (onPremisesExtensionAttributes.extensionAttribute9)
Custom Attribute 10 (onPremisesExtensionAttributes.extensionAttribute10)
Custom Attribute 11 (onPremisesExtensionAttributes.extensionAttribute11)
Custom Attribute 12 (onPremisesExtensionAttributes.extensionAttribute12)
Custom Attribute 13 (onPremisesExtensionAttributes.extensionAttribute13)
Custom Attribute 14 (onPremisesExtensionAttributes.extensionAttribute14)
Custom Attribute 15 (onPremisesExtensionAttributes.extensionAttribute15)

Example Script

XML
<ytriaAutomation Application="sapio365">
	<ShowSignIns CutOff="lastWeek" Filter="startsWith(deviceDetail/browser, 'Brave'">
		...
	</ShowSignIns>

	<ShowSignIns CutOff="lastWeek" AdditionalUserColumns="userType;passwordPolicies;accountEnabled;ALLASSIGNEDLICENSESBYSOURCE"/>
	<ShowSignIns CutOff="lastWeek" AdditionalUserColumns="User Type;Password policies;Sign-in status;Source - Assigned Licenses"/>
</ytriaAutomation>
