Export: Save Data to File

Tag: Export

The Export tag allows you to automate the Export function that generates a file from the content of the grid.

XML

<Export Target="Grid"/>
	<SetParam field="FilePath" value="D:\Automation-export\ExportMainGrid.csv"/>
	<SetParam field="ExportType" value="Text"/>
	<SetParam field="FileOutput" value="Unicode"/>
	<SetParam field="OpenFileOnceGenerated" value="true"/>
</Export>

Tag Attributes

Attributes	Attribute Values	Value Description	Comment
Target	User definable	The name of the grid from which contents will be exported	Not Required - If no target attribute is set, the action will default to the main grid

SetParam Options

Fields found in the 'Export to File' dialog

Attributes	Attribute Values	Comment
Mode	Create AppendRows AppendGrid AppendRowsBlind	Default Not available for XML and HTML export Not available for XML and HTML export
FileOutput	ASCII Unicode	N/A
SelectedRowsOnly	True / False	Not Required - Default is True
ExpandAllGroups	True / False	Not Required - Default is False
ChildrenOnly	True / False	Not Required - Default is False
ExportType	Excel Excel19972003 Text HTML XML	N/A
FilePath	User definable	If no file path is specified, then the resulting file will be created in the same location as the automation file currently being run.
OpenFileOnceGenerated	True / False	Default is "True"
ExcelSheetName	User definable	N/A
ExcelTemplate	User definable
IncludeLockedColumns	True / False	Defaults to True (if grid has locked columns)
BytesAsText	True / False	Defaults to False

Detailed Description

The Export function can be automated using the tag Export; content can be pulled from any grid where this function is available.

The attribute Target can be used to identify which grid's content you want to export.

If no attribute is used, or if the attribute/value Target="Grid" is used, the main grid will be exported:
<Export/>

or
<Export Target="Grid"/>

TIP	For product specific grid names see this page.

As stated in the table above, the modes AppendGrid and AppendRows are not available for both the XML (Field="ExportType" Value="XML"), and HTML (Field="ExportType" Value="HTML") export settings.

In these cases the Field="Mode" will be reset to Value="Create".

Product Specific Actions and Functions

consoleEZ

Due to the nature of consoleEZ, it is possible to have multiple grids and consoles open at once. The following attributes area available for you to target the specific grid for exporting its contents.

The following attributes are available solely in consoleEZ (in addition to the standard Export attributes and setParam actions):

Attributes	Attribute Values	Value Description	Comment
Server	Abbreviated server name	Name as found in the 'Select server' list of the 'Open Server' dialog	Mandatory for Target="LogAnalyzer" or Target="VolumeAnalyzer"
Index	Positive integer	Console window index number	Mandatory forTarget="LogAnalyzer" or Target="VolumeAnalyzer"

Example Script

XML

<Load Database="log.nsf" Index="1" Server="WEBTEST/YTRIA" Type="LogAnalyzer">

aclEZ

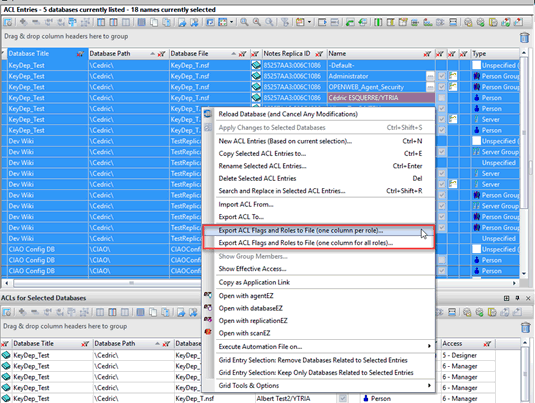

In addition to the standard Export of the main grid, the action Export ACL Flags and Roles to File, found in the right-click menu of aclEZ, can also be automated.

Two values allow the user to choose between these additional types of exports possible.

Attributes	Attribute Values	Value Description	Comment
Type	FlagsAndRoles FlagsAndRolesConsolidated	This will export one column per role This will export one column for all roles	Required - only one Type value may be set

Example Script

XML

<Export Type="FlagsAndRoles">
