Create My Selection Folder

Tag: MySelection

The MySelection tag, along with a set of SetParam options will emulate the process of creating a My Selection Folder in scanEZ.

<MySelection>
	<Setparam Field="MySelectionName" Value="Test"/>
	<Setparam Field="TitleOptionType" Value="Column"/>
	<Setparam Field="TitleOptionColumnName" Value="All Documents|($All):2"/>
</MySelection>

XML

Tag Attributes

Attributes	Attribute Value	Value Description	Comment
Last Focus	True/False	N/A	Not Mandatory – default is 'False'

SetParam Options

Field Name	Compatible Field Values	Value Description	Comment
MySelectionName	User defined	Name of My Selection folder to be created	Mandatory
TitleOptiontype	Default Field System Formula Column	Title options as found in My Selection dialog	See detailed description
FieldAttribute	Index Is Encrypted Is Protected Is Signed Is Summary Modification Date Name Number of Values Sequence Number Size (bytes) Type Value	Name of item property (normally displayed in the main panel of scanEZ)	See detailed description
TitleOptionFieldName	Name of field to be used	Name as shown in the second list in the Field info/value Displayed Title	See detailed description
TitleOptionFormula	User defined	N/A	See detailed description
TitleOptionColumnName	Column header name as shown in UI	N/A	See detailed description
TitleOptionSystem	Accessed (In this file) Added (In this file) Created (Initially) Created By Flags Modified (Initially) Modified By Modified in this file Note Class NoteID (Decimal) NoteID (Hexadecimal) Number of items in Document Sequence Number Size UNID		See detailed description

Detailed Description

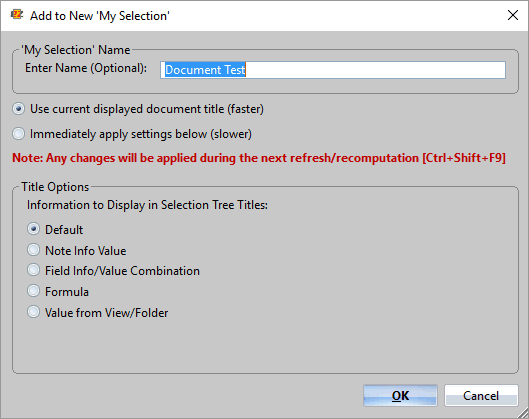

All options available in the My Selection dialog can be specified in SetParam child actions.

NOTE

LastFocus:

If this is set to LastFocus="False",a tree selection is mandatory or nothing will be placed in the MySelection folder.

If set to LastFocus="True", the new MySelection's contents will be taken from whatever was last focused upon in the tree, be it a category, document, or design element.

NOTE

Field and Value SetParam actions:

Field="TitleOptionFieldName" : Use this attribute with Field="TitleOptionType" Value="Field"

Field="FieldAttribute": Use this attribute with Field="TitleOptionType" Value="Field"

Field="TitleOptionFormula": Use this attribute with Field="TitleOptionType" Value="Formula"

Field="TitleOptionColumnName": Use this attribute with Field="TitleOptionType" Value="Column"

Field="TitleOptionSystem": Use this attribute with Field="TitleOptionType" Value="System"

Example Script

<?xml version="1.0" encoding="UTF-8"?>
<ytriaAutomation Application="scanEZ" ApplicationVersion="16.5">
	<Load Server="ACME01/ACME" database="maildbtest1.nsf"/>
	<select target="tree" category="Documents" type="Memo"/>
	<Select target="tree" category="ByNoteID" value="2318:2546:2430"/>
	<MySelection>
		<Setparam Field="MySelectionName" Value="Message Body Size"/>
		<Setparam Field="TitleOptionType" Value="Field"/>
		<Setparam Field="FieldAttribute" Value="Size"/>
		<Setparam Field="TitleOptionFieldName" Value="Body"/>
	</MySelection>
	<focus target="tree" category="Documents" type="Appointments"/>
	<MySelection lastFocus="true">
		<Setparam Field="MySelectionName" Value="Attendees "/>
		<Setparam Field="TitleOptionType" Value="Field"/>
		<Setparam Field="FieldAttribute" Value="Value"/>
		<Setparam Field="TitleOptionFieldName" Value="RequiredAttendees"/>
	</MySelection>
</ytriaAutomation>

XML

In the script above, two new My Selection folders will be made. One will contain the Documents of type 'Memo' as well as 3 documents specified by their Note IDs. The displayed title of the documents in this folder will be the value of the Field 'Size'. The second MySelection folder will be made from the tree category who was last in focus, in this case the 'Appointments' category. The displayed title of the documents in this My Selection folder will be the value found in the Field 'RequiredAttendees'.
