Tag: DocumentAnalyzer

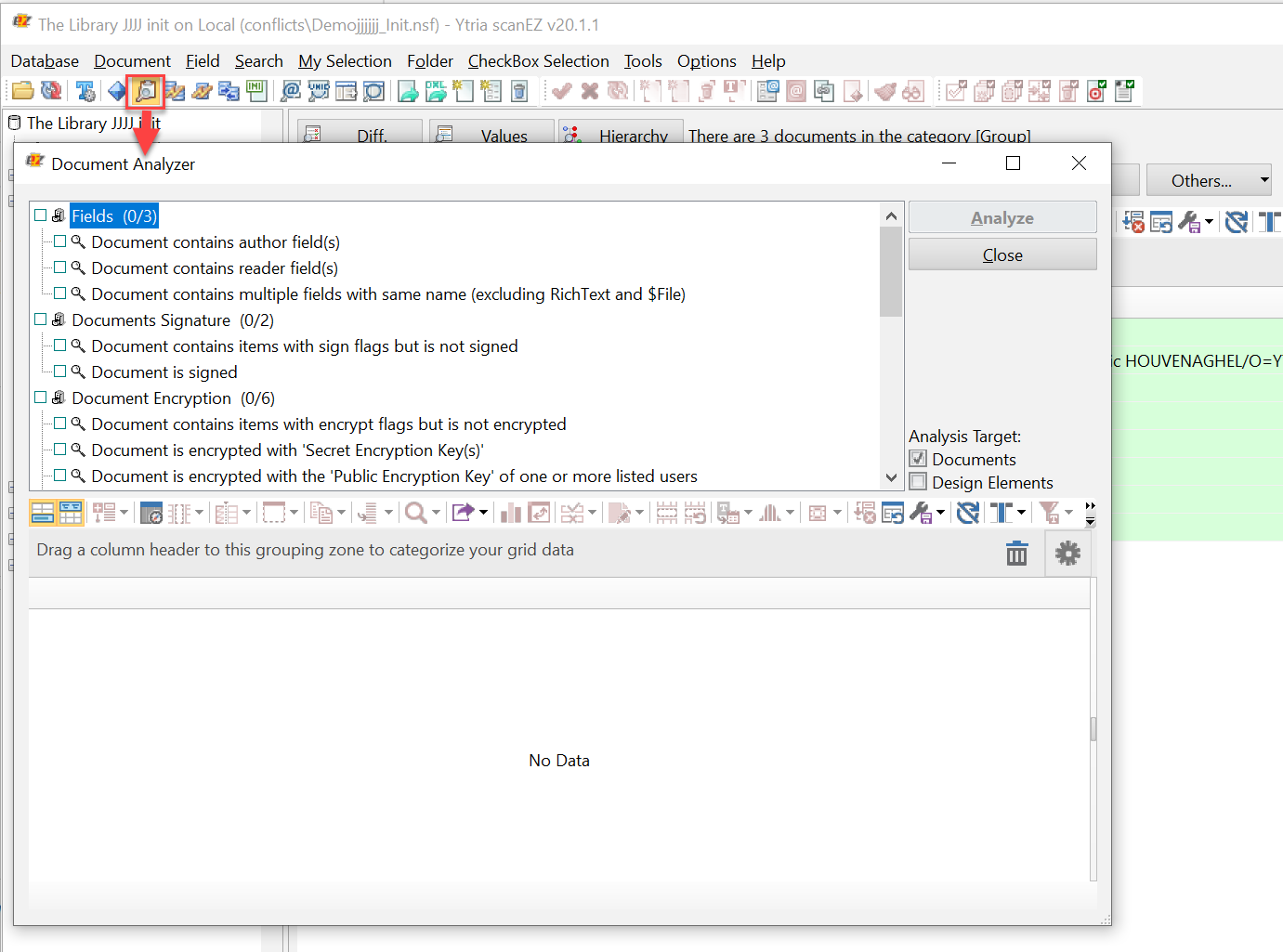

The DocumentAnalyzer action, along with the applicable SetParam child actions, lets you automate the Document Analyzer tool found in scanEZ.


<DocumentAnalyzer KeepAlive="true">
	<SetParam field="TreeOptions" value="CategoryFields"/>
	<SetParam field="TreeOptions" value="CategorySummarized"/>
	<SetParam field="Documents" value="true"/>
	<SetParam field="DesignElements" value="true"/>
</DocumentAnalyzer>
XML

SetParam Options

Field NameCompatible Field ValuesValue DescriptionComment
TreeOptionsCategoryFields'Fields' category options found within the Document Analyzer tree.One value per line.
CategoryFieldsAuthor

CategoryFieldsReader

CategoryFieldsMultiple

'Fields' category options found within the Document Analyzer tree.One value per line.
CategorySignature'Documents Signature' category options found within the Document Analyzer tree.One value per line.
CategorySignatureNotSigned

CategorySignatureSigned

'Documents Signature' category options found within the Document Analyzer tree.One value per line.
CategoryEncryption'Documents Encryption' category options found within the Document Analyzer tree.One value per line.
CategoryEncryptionNotEncrypted

CategoryEncryptionSecret

CategoryEncryptionPublicListed

CategoryEncryptionPublicUnlisted

CategoryEncryptionNotEncryptedPublic

CategoryEncryptionNotEncryptedSecret

'Documents Encryption' category options found within the Document Analyzer tree.One value per line.
CategoryResponses'Parent/Responses' category options found within the Document Analyzer tree.One value per line.
CategoryResponsesMissingResponse

CategoryResponsesMissingParent

CategoryResponsesIsOwnParent

CategoryResponsesResponseWithPhantomParent

CategoryResponsesIsPhantomParent

CategoryResponsesIgnorantparent

'Parent/Responses' category options found within the Document Analyzer tree.One value per line.
CategoryConflicts'Conflicts' category options found within the Document Analyzer tree.One value per line.
CategoryConflictNoValidParent

CategoryConflictIsOwnConflict

'Conflicts' category options found within the Document Analyzer tree.One value per line.
CategorySummarized'Sum of Summarized Item Data' category options found within the Document Analyzer tree.One value per line.
CategorySummarized20k

CategorySummarized25k

CategorySummarized30k

CategorySummarized32k

'Sum of Summarized Item Data' category options found within the Document Analyzer tree.One value per line.
DocumentsTrue/FalseSets the checkbox option's state.Not mandatory
DesignElementsTrue/FalseSets the checkbox option's state.Not mandatory

Detailed Description

Setting the TreeOptions field values that correspond to the higher-level nodes in the Document Analyzer tree is the equivalent of setting all tree options within that category.

<SetParam field="TreeOptions" value="CategoryFields"/>

is equal to

<SetParam field="TreeOptions" value="CategoryFieldsAuthor"/>
<SetParam field="TreeOptions" value="CategoryFieldsReader"/>
<SetParam field="TreeOptions" value="CategoryFieldsMultiple"/>


NOTEOnly one TreeOptions value can be set per script line.

Example Script

<?xml version="1.0" encoding="UTF-8"?>
<ytriaAutomation Application="scanEZ" ApplicationVersion="16.5" Version="1.0">
	<Load Server="ACME01/ACME" Database="testdatabase.nsf" />
	<DocumentAnalyzer KeepAlive="false">
		<SetParam field="TreeOptions" value="CategoryFields"/>
		<SetParam field="TreeOptions" value="CategorySummarized"/>
		<SetParam field="Documents" value="true"/>
		<SetParam field="DesignElements" value="true"/>
		<Select Lines="All"/>
	</DocumentAnalyzer>
</ytriaAutomation>
XML

In the script above, the database "testdatabase.nsf" will be loaded. The Document Analyzer process will be launched using all tree options within the "Fields" and "Sum of Summarized Item Data" categories. The Analysis Target options of 'Design Elements' and 'Documents' will be selected. All rows (all documents and designs found) within the resulting grid will be selected and placed into a new My Selection folder.
