Tag: PropertyAnalyzer

The PropertyAnalyzer action, along with a set of nested SetParam child actions, automates the Property Analyzer process.


<PropertyAnalyzer>
	<SetParam Field="TemplateNamesDuplicates" Value="True"/>
	<SetParam Field="ReplicaIDDuplicates" Value="True"/>
	<SetParam Field="InheritFromGhostTemplate" Value="True"/>
	<SetParam Field="DBPercentageOfQuotaRemaining" Value="True"/>
	<SetParam Field="DBPercentageOfQuotaRemainingValue" Value="1"/>
	<SetParam Field="NoDataChangeSince" Value="True"/>
	<SetParam Field="NoDataChangeSinceValue" Value="2"/>
	<SetParam Field="DesignChangedWithinLast" Value="True"/>
	<SetParam Field="DesignChangedWithinLastValue" Value="3"/>
	<SetParam Field="DBSpecificSize" Value="True"/>
	<SetParam Field="DBSpecificSizeValue" Value="4"/>
	<SetParam Field="LauncheAnalyzerOnStartup" Value="False"/>
</PropertyAnalyzer>
XML

SetParam Options

Field NameCompatible Field ValuesValue DescriptionComment
TemplateNamesDuplicatesTrue/ False

N/A

N/A

ReplicaIDDuplicatesTrue/ False

N/A

N/A

InheritFromGhostTemplateTrue/ False

N/A

N/A

DBPercentageOfQuotaRemainingTrue/ False

N/A

N/A

DBPercentageOfQuotaRemainingValueUser defined number

N/A

N/A

NoDataChangeSinceTrue/ False

N/A

N/A

NoDataChangeSinceValueUser defined number

N/A

N/A

DesignChangeWithinLastTrue/ False

N/A

N/A

DesignChangeWithinLastValueUser defined number

N/A

N/A

DBSpecificSizeTrue/ False

N/A

N/A

DBSpecificSizeValueUser defined number

N/A

N/A

LaunchAnalyzerOnStartupTrue/ False

N/A

N/A

Detailed Description

The action <PropertyAnalyzer/> alone, will run the Property Analyzer using the current default settings.

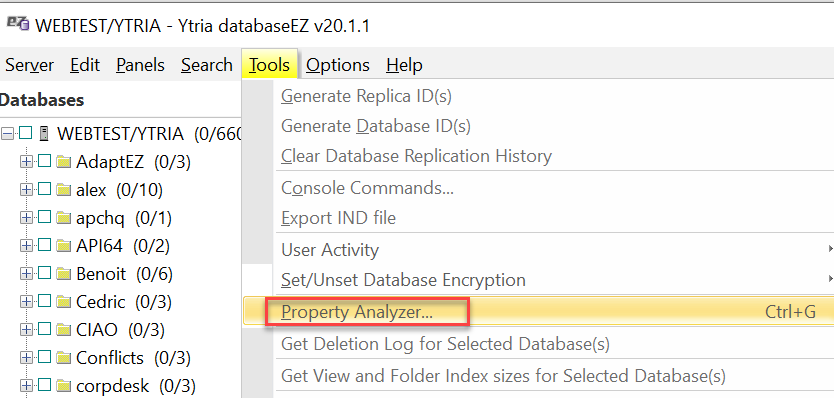

Running the action with a set of nested SetParam actions, will trigger the 'Save Settings and run analyzer' options and the fields to set corresponding options as found in the Property Analyzer dialog.

Example Script

<?xml version="1.0" encoding="UTF-8"?>
<ytriaAutomation Application="databaseEZ" ApplicationVersion="16.5">
	<Load Server="Acme01/ACME"/>
	<PropertyAnalyzer>
		<SetParam Field="TemplateNamesDuplicates" Value="True"/>
		<SetParam Field="ReplicaIDDuplicates" Value="True"/>
		<SetParam Field="InheritFromGhostTemplate" Value="True"/>
		<SetParam Field="DBPercentageOfQuotaRemaining" Value="True"/>
		<SetParam Field="DBPercentageOfQuotaRemainingValue" Value="1"/>
		<SetParam Field="NoDataChangeSince" Value="True"/>
		<SetParam Field="NoDataChangeSinceValue" Value="2"/>
		<SetParam Field="DesignChangedWithinLast" Value="True"/>
		<SetParam Field="DesignChangedWithinLastValue" Value="3"/>
		<SetParam Field="DBSpecificSize" Value="True"/>
		<SetParam Field="DBSpecificSizeValue" Value="4"/>
		<SetParam Field="LauncheAnalyzerOnStartup" Value="False"/>
	</PropertyAnalyzer>
</ytriaAutomation>
XML

In the script above, the Property Analyzer will be saved and run using the settings specified in the SetParam child actions
