Tag:  Values

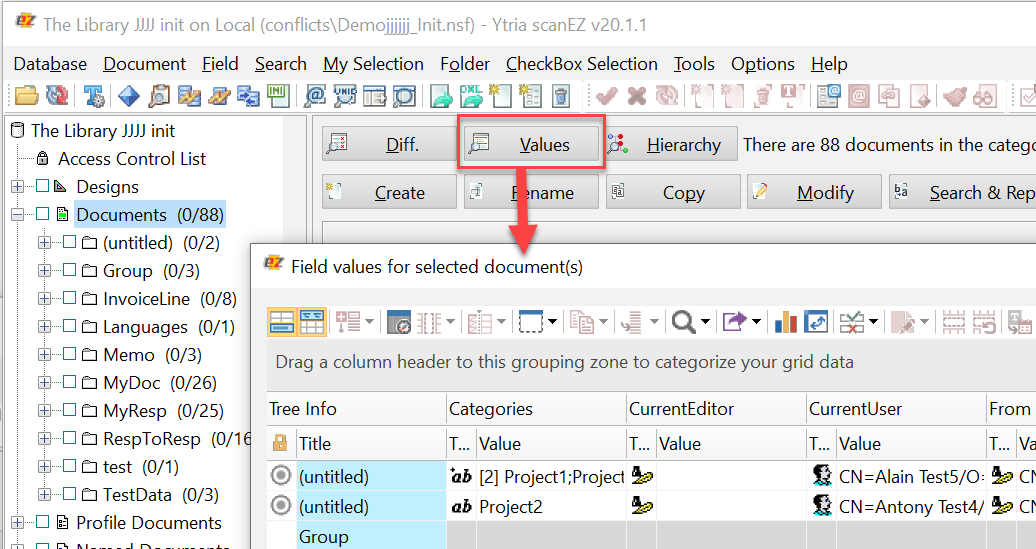

The  Values  action, along with the applicable SetParam child actions, lets you automate the  'Values'  operation in scanEZ.


<Values KeepAlive="True">
	<SetParam Target="SelectDocumentItems" Field="All" value="true"/>
</Values>
XML

SetParam Options

Field NameCompatible Field ValuesValue DescriptionComment
AddItemUser definableItem name to add to the Values gridNot mandatory – see detailed description
AllTrue/FalseSets the checkbox state of 'Use all items present in selected documents' optionNot mandatory – see detailed description

Detailed Description

When using the SetParam options  AddItem  and  All , certain conditions apply:

  • AddItem  is not mandatory if  <SetParam Field="All" value="true"/>
  • All  is not mandatory if  AddItem  is used to define the items to add. Omission will have the same result as  <SetParam Field="All" value="false"/>.


NOTE The  Values  action can also be used as a self-closing action line to trigger the Values operation after making a selection in the Diff panel.
<Values KeepAlive="True"/>

Example Script

<YtriaAutomation Version="1.0" Application="scanEZ" ApplicationVersion="16.5" Console="False">
	<load server="ACME01/ACME" database="Mailtest.nsf"/>
	<focus target="tree" category="Documents" type="Memo"/>
	<Values KeepAlive="True">
		<SetParam Field="AddItem" value="Form"/>
		<SetParam Field="AddItem" value="From"/>
		<SetParam Field="AddItem" value="DeliveredDate"/>
		<ShowTypeColumns value="false"/>
	</Values>
</YtriaAutomation>
XML

In the script above, the database "Mailtest.nsf" will be loaded into scanEZ and the selection tree focus placed on the category of "Memo" type documents. The  Values  action will then launch a Values operation on all documents within that focused selection; the values found in the items named "Form", "From", and "DeliveredDate" will be included in the dialog grid. Type columns will not be shown, and the dialog will remain open.


NOTE Reminder: A  MySelection   action script block can be nested within this action block to add selections to a virtual My Selection folder.
