Set Agent Timeline Options + Copy to Clipboard

Tags: AgentTimeLine + AgentTimeLineCopy

The actions AgentTimeLine + AgentTimeLineCopy, along with applicable SetParam child actions, let you automate the Agent Timeline functions in agentEZ.

<AgentTimeLine>
	<SetParam Field="TimeOption" Value="Last Month"/>
	<SetParam Field="ShowOption" Value="Show scheduled enabled agents only"/>
</AgentTimeLine>

XML

OptionsAction:

AgentTimeLine

SetParam

Field Name	Compatible Field Values	Value Description	Comment
TimeOption	Last 24 Hours Last 7 Days Last Month Max. Date Range	Selection options from the 'Time Option' dropdown list	N/A
ShowOption	Show scheduled enabled agents only Show all agents in grid	Selection options from the "Show Option' dropdown list	N/A

Detailed Description:

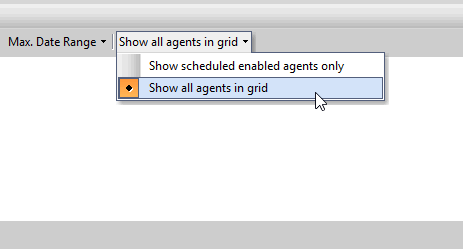

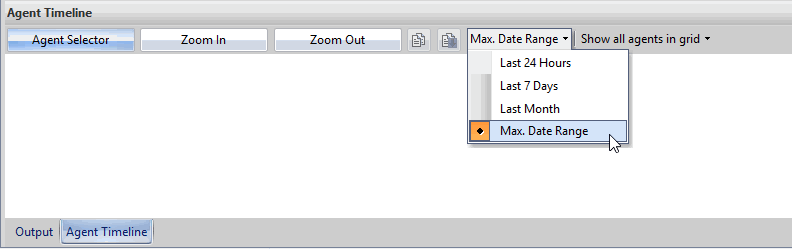

Use this action in your automation script to emulate the selection of options located in the two dropdown lists in the Agent Timeline panel.

Example Script

<AgentTimeLine>
	<SetParam Field="TimeOption" Value="Last Month"/>
	<SetParam Field="ShowOption" Value="Show scheduled enabled agents only"/>
</AgentTimeLine>

XML

Tag Attributes:Action: AgentTimeLineCopy

Attributes	Attribute Value	Value Description	Comment
Type	Clipboard File	Uses the process and dialog options found in the 'Agent timeline Clipboard'options Uses the process and dialog options found in the 'Agent timeline Clipboard'options	N/A

SetParam Options

Field Name	Compatible Field Values	Value Description	Comment
AgentName	Name	Name of agent	N/A
AgentTitle	True/False	N/A	N/A
AgentFileName	True/False	N/A	N/A
AgentPath	True/False	N/A	N/A
Filepath	User definable	User defined file path	N/A

asd

Detailed Description:

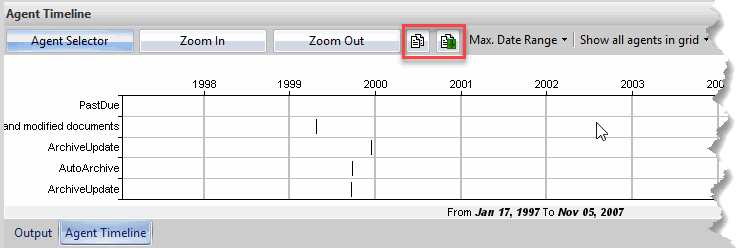

Use this action in your automation script to emulate the selection of the type of Agent Timeline Copy process you would like to use, as well as the options located in the corresponding dialog.

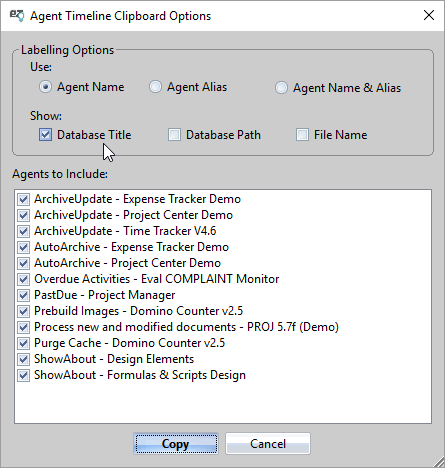

Example Script for Type="Clipboard"

<AgentTimeLineCopy Type="Clipboard">
	<SetParam Field="AgentName" Value="Name"/>
	<SetParam Field="AgentTitle" Value="True"/>
	<SetParam Field="AgentFileName" Value="False"/>
	<SetParam Field="AgentPath" Value="False"/>
</AgentTimeLineCopy>

XML

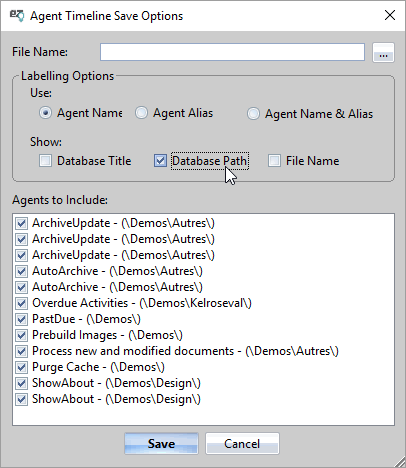

Example Script for Type="File":

<AgentTimeLineCopy Type="File">
	<SetParam Field="FilePath" Value="C:\Users\ytria\Desktop\timeline.bmp"/>
	<SetParam Field="AgentName" Value="Name"/>
	<SetParam Field="AgentTitle" Value="True"/>
	<SetParam Field="AgentFileName" Value="True"/>
	<SetParam Field="AgentPath" Value="True"/>
</AgentTimeLineCopy>

XML
