Set Focus on Tree Entry
Tag: Focus
The self-closing tag Focus is used to automate the setting of focus within the Selection Tree.
Detailed Description
The Focus action uses the same logic as the Select action. But unlike the Select action, this will not make a checkbox selection next to the tree entry; this will only place the focus (highlight) on the specified tree entry.

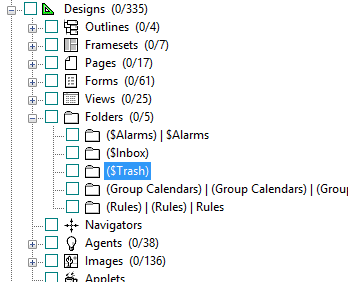

For example, <Focus Target="Tree" Category="Designs" Type="Folders" Name="($Trash)"/>would set the focus (highlight) the Folder ($Trash) as seen below.
Focus can be set at the Category level, the Type level, or the Name level.
For more information about compatible Attributes see Select.
Tag Attributes
| Attributes | Attribute Value | Value Description |
|---|---|---|
| Target | Tree | N/A - Required |
| Category | User defined My Selection name Access Control List Designs Documents Profile Documents Deletion Stubs Conflicts ByNoteID | Detailed Type values for the Designs category can be found in the Select page - Required |
| Type | Displayed tree name | N/A - Not applicable when using category 'ByNoteID' |
| Name | Displayed document title | N/A - Not applicable when using category 'ByNoteID' |
| Value | Decimal or hexadecimal value of NoteID | N/A - Not applicable when using category 'ByNoteID' |
Example Scripts
<Focus Target="Tree" Category="Designs" Type="Agents" Name="My Agent"/><?xml version="1.0" encoding="UTF-8"?>
<ytriaAutomation Application="scanEZ" ApplicationVersion="16.5">
<Load Server="ACME01/ACME">
<Load Database="mail\daltmann.nsf" Select="True"/>
</Load>
<Expand Target="Tree" Category="Designs" Type="Folders"/>
<Focus Target="Tree" Category="Designs" Type="Folders" Name="($Inbox) [en]"/>
<Select Target="ItemsGrid" lines="all"/>
</ytriaAutomation>In the script above, the database "daltmann.nsf" on ACME01/ACME will be loaded into scanEZ. The selection tree will be expanded to allow the action Focus to place the focus (highlight) on the folder named "($Inbox) [en]". All entries within the Items grid will be selected.
