Tree: Select by File

Tag: SelectbyFile

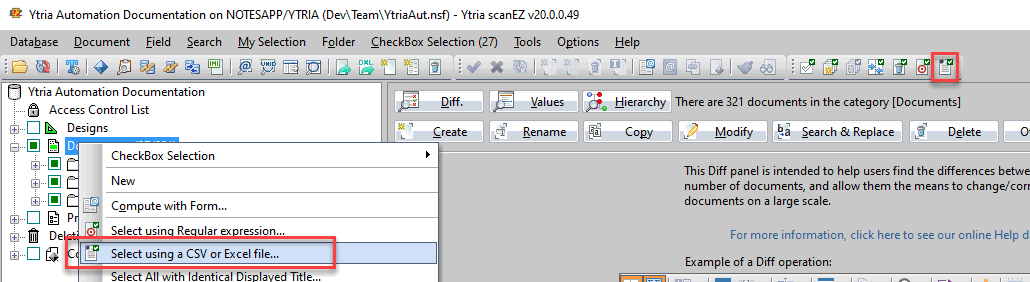

The SelectbyFile function selects or unselects tree items according to the content of a CSV or Excel file. The script must first expand and focus on the parent node of the tree section that needs to be matched to the CSV/Excel file content. Changing the tree node titles might also be necessary.

Detailed Description

All parameters can also be set in SetParam children actions.

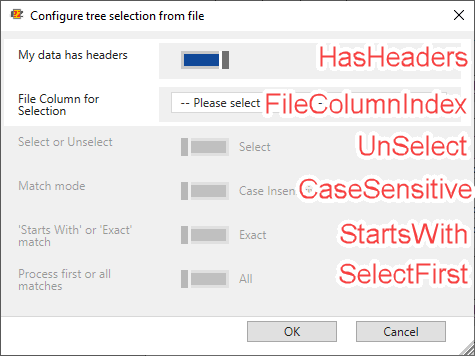

Tag Attributes

Attributes	Attribute Value	Value Description
FilePath	N/A	CSV or Excel file with the data to be used for selection in the tree - Required
HasHeaders	TRUE / FALSE (Defaults to TRUE)	N/A
FileColumnIndex	N/A	Column index in CSV or Excel file (starts at 0) - Required
Unselect	TRUE / FALSE (Defaults to FALSE)	N/A
CaseSensitive	TRUE / FALSE (Defaults to FALSE)	N/A
StartsWith	TRUE / FALSE (Defaults to FALSE)	N/A
SelectFirst	TRUE / FALSE (Defaults to FALSE)	N/A
KeepAlive	TRUE / FALSE (Defaults to FALSE)	N/A

Example Scripts

XML

<SelectByFile FilePath="D:\Temp\scanEZ-selectTreeFile.csv" FileColumnIndex="2" StartsWith="true"/>

XML

<YtriaAutomation>
	<Load Database="Dev\Team\YtriaAut.nsf" Server="NOTESAPP/YTRIA"/>
	<Expand target="tree" category="Documents"/>
	<Focus target="tree" category="Documents"/>
		<ChangeDocumentTitle>
			<Setparam Field="TitleOptionType" Value="Field"/>
			<Setparam Field="FieldAttribute" Value="Value"/>
			<Setparam Field="TitleOptionFieldName" Value="Subject"/>
		</ChangeDocumentTitle>
	<!--SelectByFile FilePath="D:\Temp\scanEZ-selectTreeFile.csv" HasHeaders="false" FileColumnIndex="2" UnSelect="true" CaseSensitive="true" StartsWith="true" SelectFirst="true"/-->
	<SelectByFile FilePath="D:\Temp\scanEZ-selectTreeFile.csv" FileColumnIndex="2" StartsWith="true"/>
	<!--Delete Checkbox="true" NoDeletionStubs="true" DeleteResponses="true"/-->
</YtriaAutomation>
