FilterFromList: Filter Values from List

Tag: FilterFromList

The FilterFromList function adds value filters to columns from values in a list of SetVar actions.

Detailed Description

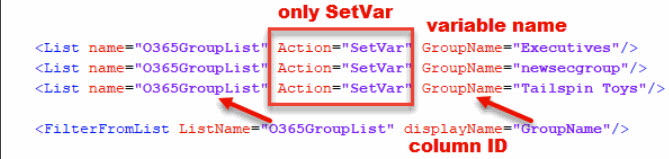

The list must contain SetVar actions only.

SetVar actions

Tag Attributes

Attributes	Value Description
Target	Uniquely identifies the grid (grid code name)
ListName	Name of the list to use as source of values by which to match row.
(column ID) Unique ID of the column to filter values on	(variable Name) Name of variable that stores filter values in the list

Attributes

Value Description

Target

Uniquely identifies the grid (grid code name)

ListName

Name of the list to use as source of values by which to match row.

(column ID)

Unique ID of the column to filter values on

(variable Name)

Name of variable that stores filter values in the list

Example Scripts

XML

<FilterFromList ListName="O365GroupList" displayName="GroupName"/>

XML

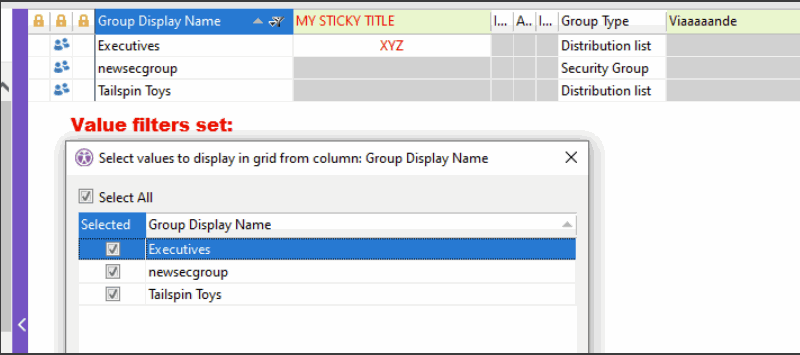

<ytriaAutomation Console="True" KeepAlive="True">
	<List name="O365GroupList" Action="SetVar" GroupName="Executives"/>
	<List name="O365GroupList" Action="SetVar" GroupName="newsecgroup"/>
	<List name="O365GroupList" Action="SetVar" GroupName="Tailspin Toys"/>
	<FilterFromList ListName="O365GroupList" displayName="GroupName"/>
</ytriaAutomation>

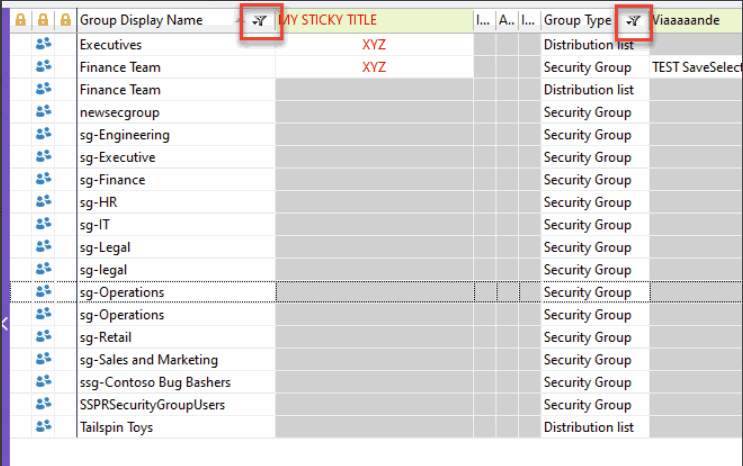

More than one pair of column ID / variable name can be used. Each column is then set wit its own list of value filters. A list generated by SetVarListFromGridSelection. Can be used and combined with hard-coded entries:

XML

<ytriaAutomation Console="True" KeepAlive="True">
	<Select Lines="ByValue">
		<SetParam ColumnID="groupType" Value="Security Group"/>
	</Select>
	<SetVarListFromGridSelection ListName="O365GroupList" GroupName="displayName" Type="groupType"/>
	<List name="O365GroupList" Action="SetVar" Type="Distribution list"/>
	<List name="O365GroupList" Action="SetVar" GroupName="Executives"/>
	<List name="O365GroupList" Action="SetVar" GroupName="newsecgroup"/>
	<List name="O365GroupList" Action="SetVar" GroupName="Tailspin Toys"/>
	<Unselect/>
	<FilterFromList ListName="O365GroupList" displayName="GroupName" groupType="Type"/>
</ytriaAutomation>
