$Flags Values in scanEZ

$Flags Values

The $Flags field sets specific attributes for a given design element.
scanEZ provides access to this field and includes a helpful reference of all possible values for the $Flags field.

How to see the definition of a selected $Flags value

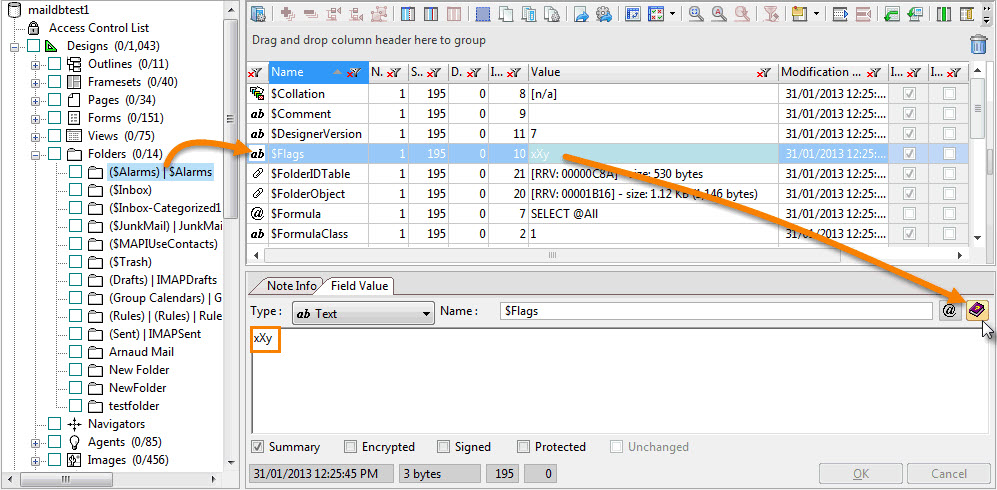

1. Select a design element in the Selection Tree.

2. Click on the $Flags field in the Items Grid.

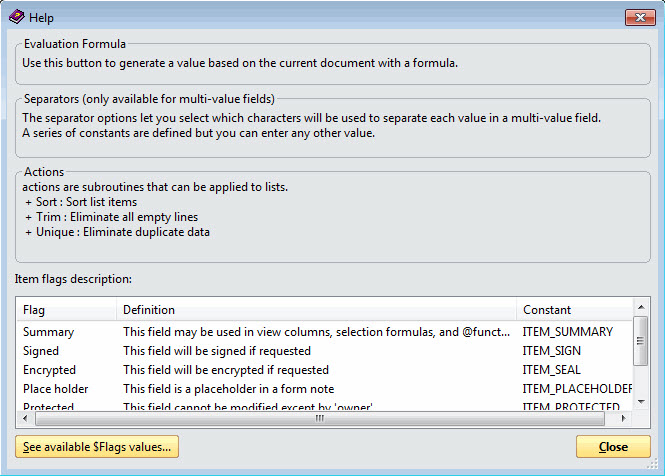

3. Click the Help button

 in the bottom panel.

4. Click See available $Flags values.

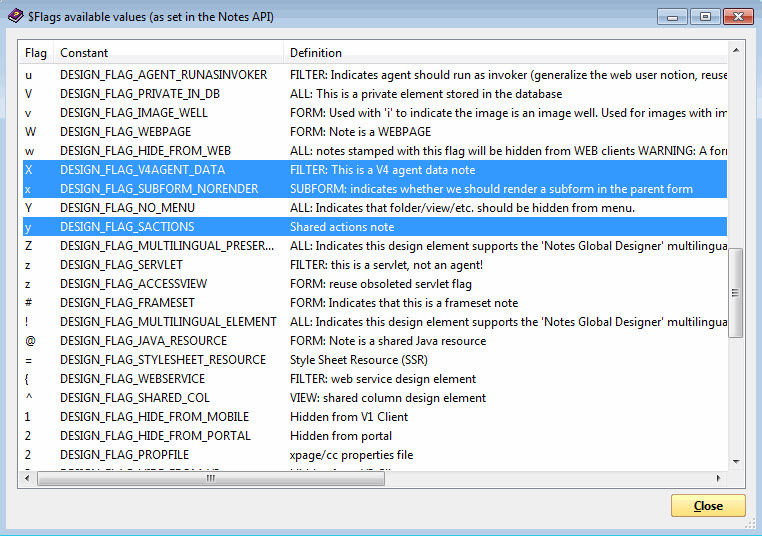

A new window opens, listing all available $Flags values (as set in the Notes API).
The $Flags values for the selected design elements will be highlighted in blue (as pictured).
