Breadcrumbs

Dashboard in consoleEZ

consoleEZ Dashboard

The Dashboard in consoleEZ provides an overview and a monitoring solution for your Domino Servers.
The Dashboard is automatically launched when consoleEZ starts.
If you close the Dashboard, you can re-open it by using the Consoles/Dashboard menu, by Open Dashboard in the Console Action toolbar icons or Ctrl + D





Dashboard toolbar icons


Reset Displayed Servers Values


Open New Consoles


Maximize Selected Server's Console


Hold Selected Server Bridges


Resume Selected Server Bridges


Close Selected Servers' Consoles


Open Selected Server Tasks


Open Selected Server Statistics


Show All Errors of the Selected Server


Launch Log Analyzer for the Selected Servers


List Currently Opened Consoles


Click To Keep On Top


Click to NOT Keep On Top

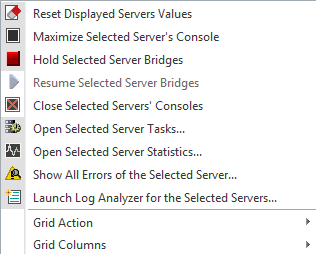

Grid right-click options - Tools and Columns


  • Reset Displayed Servers Values: Resets the counters, date and status for the selected server(s) on the Dashboard grid.

  • Maximize Selected Server's Console: Maximizes the console selected on the Dashboard grid.

  • Hold Selected Server Bridges: More information about Hold Server Bridge on this page.

  • Resume Selected Server Bridges: More information about Resume Server Bridge on this page.

  • Close Selected Servers' Consoles: Closes the consoles selected in the Dashboard grid.

  • Show All Errors of the Selected Server: More information about Show All Errors on this page.

  • Launch Log Analyzer for the Selected Server: Opens the Log Analyzer.


More information about Grid Tools and Options is here.

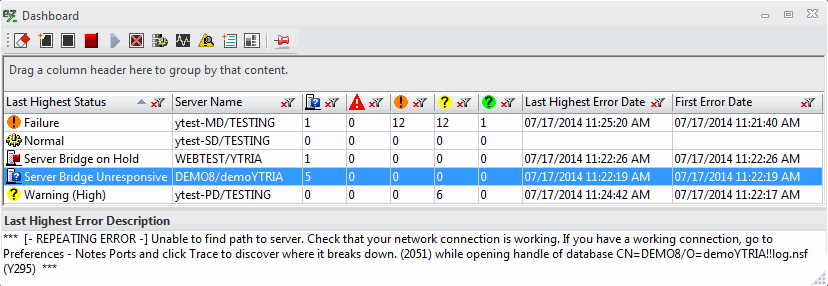

The Dashboard Grid includes the following columns:

Last Highest Status

Last Highest Domino Error.

Server Name

Domino Server.

Server Bridge Unresponsive

consoleEZ Error Code.

Fatal

Domino Fatal Error Code.

Failure

Domino Failure Error Code.

Warning (High)

Domino Warning (High) Error Code.

Warning (Low)

Domino Warning (Low) Error Code.

Last Highest Error Date

Date and Time value.

First Error Date

Date and Time value.


More information about Grid Columns is here.
